1. Introduction
In the previous article, we discussed that during the conditioning process, steam is added to heat and humidify the mixed raw materials. The heat and moisture carried by steam promote starch gelatinization and protein denaturation, improve the plasticity of the material, and provide a certain sterilization effect, creating favorable conditions for subsequent pelleting or extrusion processing.
During the extrusion process, the raw materials generally need to maintain a relatively high moisture content (usually around 20%–30%, depending on the formulation and process requirements). This ensures that the materials undergo sufficient shearing, heating, and pressure inside the extruder, allowing complete starch gelatinization and structural changes of proteins, thereby forming stable feed pellets.
After extrusion, feed pellets usually contain a relatively high moisture content. If stored directly, excessive moisture can promote microbial growth, leading to mold development and reduced storage stability.
Therefore, a drying process is required to reduce the moisture content of the pellets to a safe level (typically 8%–10%) and extend the shelf life of feed products.

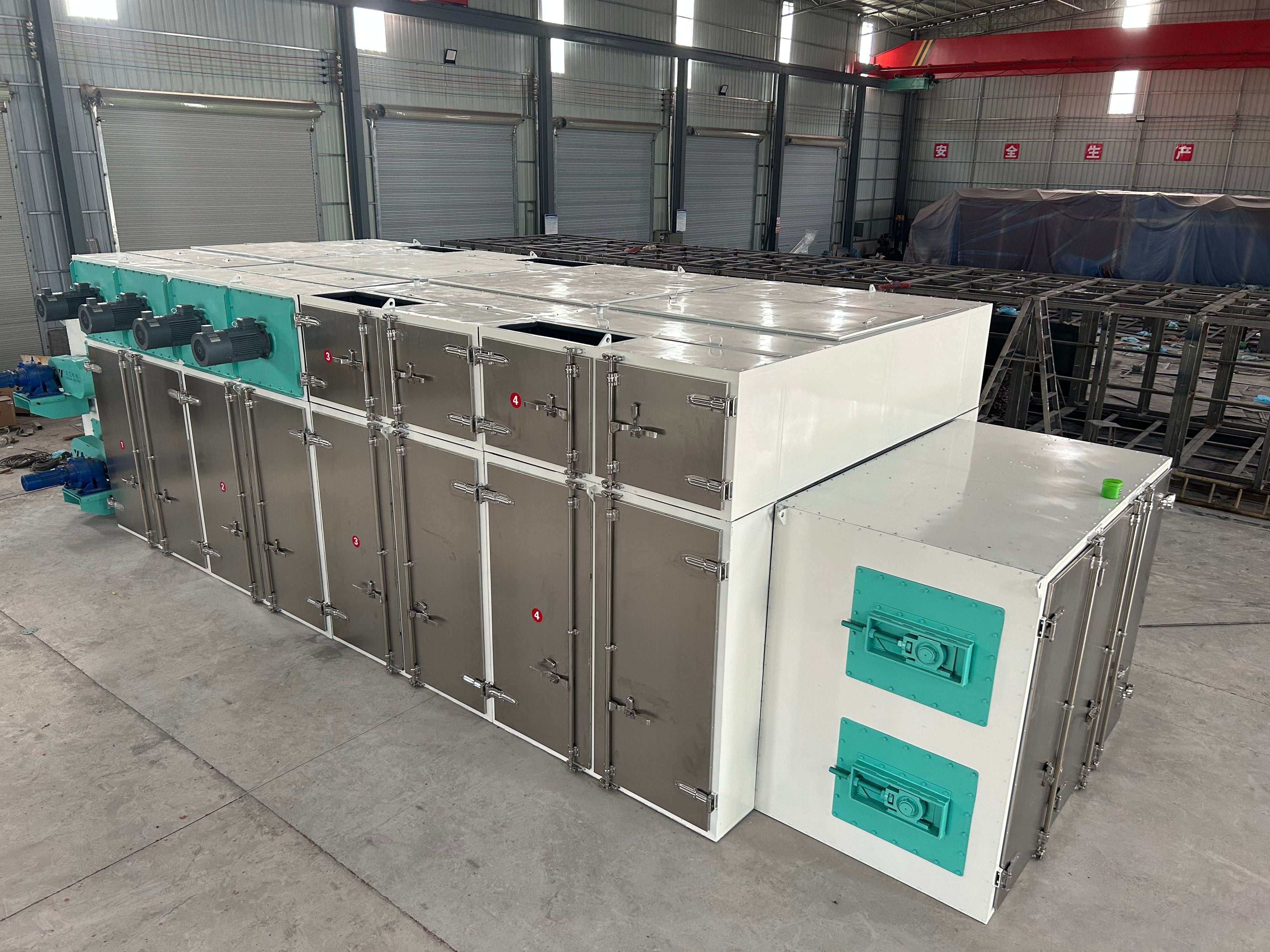

2. Introduction to Feed Dryers
Drying is not only a process of moisture removal but also an important step for stabilizing product quality. After proper drying and cooling, feed pellets can maintain good hardness, moisture stability, and storage performance.
Common dryers used in the feed industry include rotary drum dryers, infrared dryers, horizontal belt dryers, vertical dryers, and fluid bed dryers.
Among them, the three most widely used dryer types in feed processing worldwide are: Continuous horizontal dryers, Batch vertical dryers and Fluid bed dryers.
2.1 Basic Principle of Feed Dryer
Feed dryers use heated air to transfer thermal energy to the pellets, causing internal moisture to migrate toward the surface and evaporate. The generated moisture vapor is then removed through humid air discharge, achieving continuous dehumidification and reducing the feed moisture content to a suitable level for storage.
2.2 Purpose of Feed Dryer
The main purposes of feed drying include:
a. Improving feed stability and extending product shelf life;
b. Promoting changes in physical properties, such as hardness, palatability, and density;
c. Reducing material stickiness and improving downstream processing performance;
d. Reducing moisture content to the required level;
e. Preventing microbial growth and toxin formation.
3. Main Factors Affecting Drying Performance
The drying process of feed products is influenced by multiple factors, mainly including temperature, humidity, airflow conditions, material characteristics, and dryer design.
3.1 Drying Air Conditions
Air Temperature
Within the allowable temperature range of the product, a higher drying temperature can accelerate moisture evaporation. However, the temperature distribution must remain uniform to avoid local overheating and quality deterioration.
Air Humidity
Lower humidity in the drying air provides a stronger moisture absorption capacity, which improves drying efficiency.
Airflow Rate and Velocity
Proper airflow velocity enhances heat and mass transfer between hot air and feed pellets, improving moisture migration efficiency. Insufficient airflow reduces drying speed, while excessive airflow may increase energy consumption or cause pellet damage.
Airflow Direction and Distribution
Hot air should pass evenly through the material layer. Depending on the dryer design, airflow can be arranged in upward, downward, or horizontal directions to ensure uniform drying of pellets throughout the drying chamber.
3.2 Material Characteristics
The properties of feed products directly affect the drying process, including:
a. Pellet size, shape, and surface area;
b. Feed formulation components (such as starch, protein, and fat content);
c. Material density, pore structure, and binding characteristics;
d. Initial moisture content and moisture-binding characteristics.
For example, products with higher fat content usually have slower moisture migration rates and require more optimized drying temperatures and residence times.
3.3 Material Distribution and Residence Time
Uniform material layer thickness and stable material flow are essential for achieving consistent drying results.
Feed dryers usually utilize distributors and optimized conveying structures to evenly spread materials in the drying zone, preventing excessive or insufficient layer thickness that could affect hot air penetration.
The residence time of materials inside the dryer should be adjusted according to product characteristics and target moisture content. Insufficient residence time may result in incomplete drying, while excessive residence time can increase energy consumption and negatively affect product quality.
3.4 Dryer Design
Besides process parameters, the design of the dryer itself directly affects energy efficiency and drying performance. Key factors include:
- Hot air circulation method;
- Number of drying layers;
- Material conveying system;
- Sealing and insulation performance.
Efficient Use of Recirculated Air
Proper utilization of recycled hot air can reduce heat loss and improve energy efficiency.
Fresh Air Supply Method
The fresh air intake design affects humid air removal efficiency and overall drying capacity.
Uniform Material Distribution
Proper product distribution ensures sufficient contact between hot air and feed pellets.
Drying Time and Hot Air Velocity
These factors directly influence moisture evaporation rate and final product quality.
In summary, efficient drying does not simply depend on increasing temperature. It requires the proper balance of temperature, humidity, airflow rate, airflow distribution, material characteristics, and dryer design to achieve optimal heat transfer and moisture migration.
